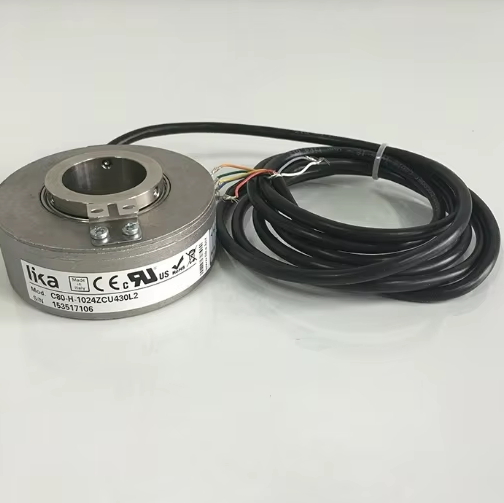

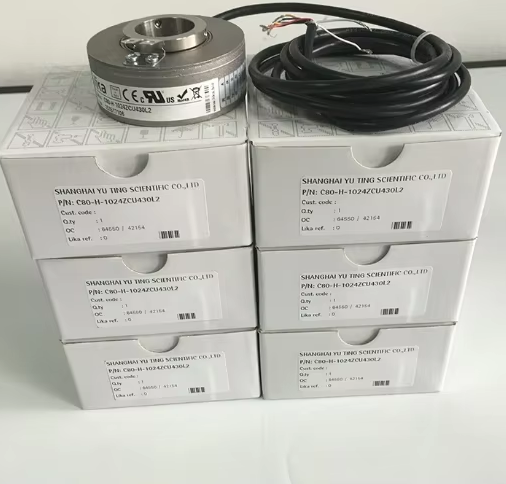

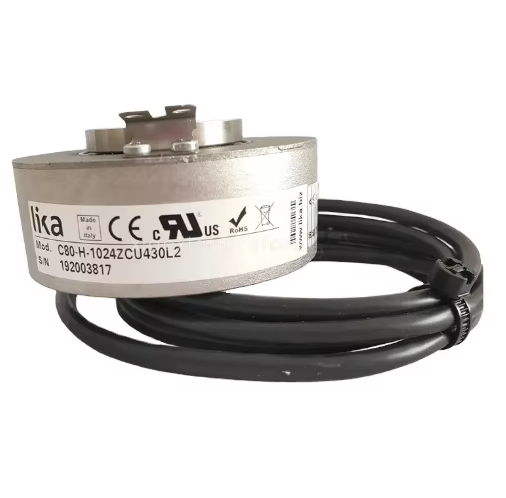

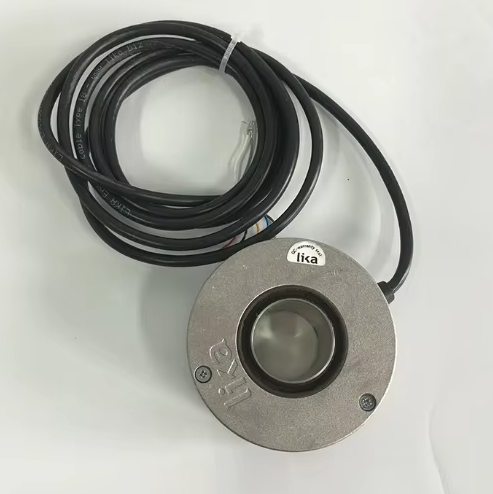

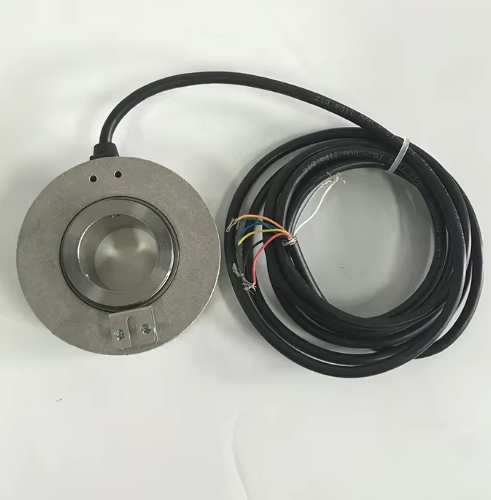

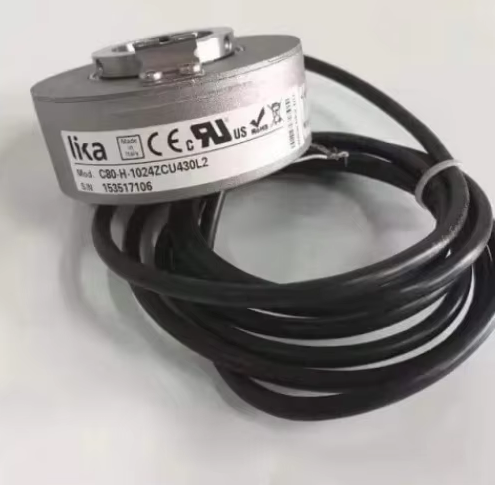

LIKA C80-H-1024ZCU430L2 Incremental Encoder, Size 80 mm Low Profile

  • LIKA C80-H-1024ZCU430L2 Incremental Encoder, Size 80 mm Low Profile
  • LIKA C80-H-1024ZCU430L2 Incremental Encoder, Size 80 mm Low Profile
  • LIKA C80-H-1024ZCU430L2 Incremental Encoder, Size 80 mm Low Profile
  • LIKA C80-H-1024ZCU430L2 Incremental Encoder, Size 80 mm Low Profile
  • LIKA C80-H-1024ZCU430L2 Incremental Encoder, Size 80 mm Low Profile
  • LIKA C80-H-1024ZCU430L2 Incremental Encoder, Size 80 mm Low Profile
Menşe yeri Tayvan
Marka adı LIKA
Sertifika CCC,CE
Model numarası C80-H-1024ZCU430L2
Min sipariş miktarı 1
Fiyat $220
Ambalaj bilgileri orijinal ambalaj
Teslim süresi 5-8 iş günü
Ödeme koşulları L/C,D/A,D/P,T/T
Yetenek temini 1000 adet/ay
Ürün ayrıntıları
Mesaj bırakın
Ürün Açıklaması
1. Product Overview

The VB-8206SD is a professional portable digital vibration meter with built-in SD card data logging function, manufactured by LUTRON. It is designed for industrial mechanical vibration inspection, predictive maintenance and on-site equipment condition monitoring. Equipped with an external piezoelectric vibration sensor and magnetic mounting base, it complies with ISO 2954 vibration measurement standards, supporting three core vibration parameters: acceleration, velocity and displacement (peak-to-peak). Integrated real-time data recording, RS232/USB PC communication and multi-mode measurement functions, it delivers full traceable vibration test data for factory maintenance, quality inspection and equipment fault diagnosisLutron.

2. Core Technical Specifications
Measurement Parameters
  • Frequency response range: 10 Hz ~ 1 kHz, compliant with ISO 2954 sensitivity standard
  • Acceleration: 0.5 ~ 199.9 m/s² (max 20.39 G), RMS / Peak / Max Hold modes
  • Velocity: 0.5 ~ 199.9 mm/s, RMS / Peak / Max Hold modes
  • Displacement (peak-to-peak): 0.001 ~ 1.999 mm, Max Hold p-p tracking
  • Measurement accuracy: ±(5% reading + 2 digits) at 80 Hz / 160 Hz standard calibration point
Data Logging & Storage
  • Built-in real-time clock (year/month/day/hour/minute timestamp)
  • Supports SD card (1GB ~ 16GB), auto-save data as CSV format directly readable by Excel without extra software
  • Adjustable sampling interval: 1 second ~ 3600 seconds; manual single-point logging available
  • Storage capacity: Unlimited records limited only by SD card capacity
Display & Operation
  • 52*38 mm 4-digit LCD with green backlight for low-light operation
  • Multi-unit switching: Metric (mm, m/s²) / Imperial (inch, G)
  • Functional keys: Data Hold, Min/Max recall, Zero calibration, Max Hold reset, sampling setup
  • Auto power-off (10 mins idle) to extend battery life; low-battery indicator on screen
Mechanical & Electrical
  • Main unit dimension: 76(W) * 203(H) * 38(D) mm, weight 520 g
  • Vibration sensor: Φ16 * 37 mm, 1.2 m connecting cable, with magnetic base for quick attachment on metal equipment
  • Power supply: 6*AA 1.5V batteries (120h continuous runtime with backlight off) or external 9V DC adapter
  • Interfaces: SD card slot, BNC sensor input, RS232 + USB dual PC communication ports
  • Operating environment: 0°C ~ 50°C, 0–80% RH non-condensing
3. Key Advantages
  1. Three-in-one vibration measurement for full machine condition analysis Simultaneously test acceleration (impact force), velocity (vibration energy) and displacement (amplitude). Technicians can comprehensively judge mechanical unbalance, shaft misalignment, loose components, bearing wear and abnormal resonance.
  2. SD card automatic data logging with timestamped records All measured data stores with real time stamps as CSV files, which can be imported to Excel for trend analysis, report generation and long-term equipment vibration tracking. No proprietary software required for data reading.
  3. ISO 2954 standard compliance with reliable industrial accuracy The frequency response and sensor sensitivity meet international vibration testing standards, ensuring consistent, comparable test results for factory maintenance audit and equipment certification.
  4. Portable complete test kit with magnetic sensor base Detachable vibration probe with magnetic base allows fast non-destructive mounting on motors, pumps, fans, compressors and production machinery without fixing brackets; lightweight handheld design suitable for field patrol inspection.
  5. Dual RS232 & USB PC connection for real-time monitoring Connect to computer via USB or RS232 cable to realize real-time data streaming, remote parameter setup and batch data export for laboratory or central maintenance room analysis.
  6. Rich auxiliary measurement functions for flexible on-site use Equipped with Data Hold, Min/Max value lock, zero calibration and peak tracking. The backlit LCD enables clear reading in dim workshop environments, and auto power-off reduces battery consumption for long shift work.
  7. Durable industrial handheld structure Robust plastic enclosure with anti-slip grip, stable performance under workshop dust and mild vibration; long battery life supports all-day on-site continuous testing.
4. Typical Application Scenarios

Predictive maintenance of motors, pumps, fans and compressors; rotating machinery fault diagnosis; production line equipment regular vibration inspection; factory equipment acceptance testing; mechanical engineering laboratory vibration analysis; HVAC system maintenance; generator and gearbox condition monitoring.
