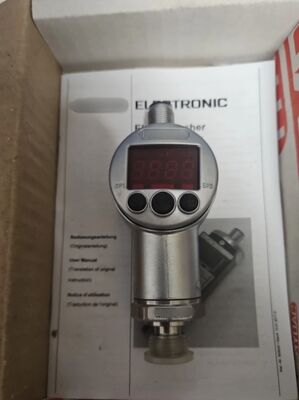

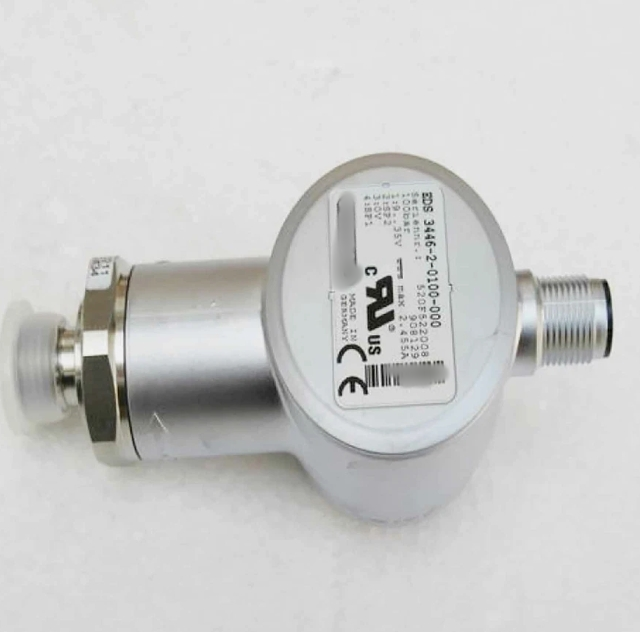

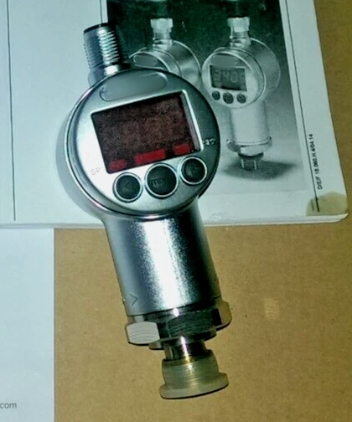

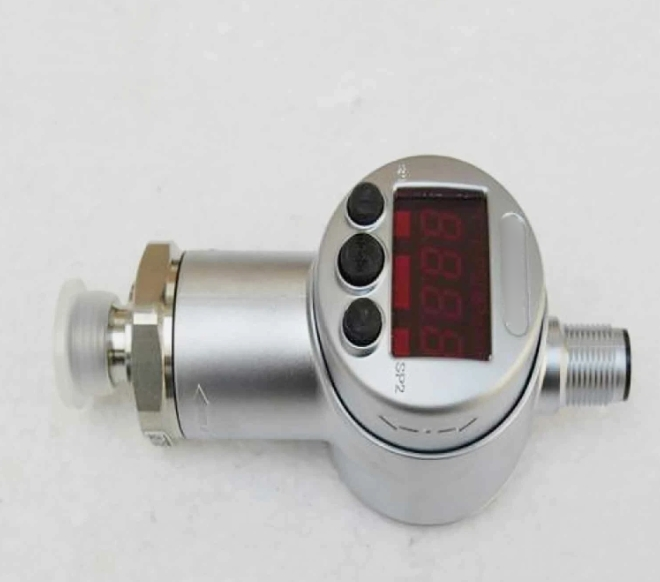

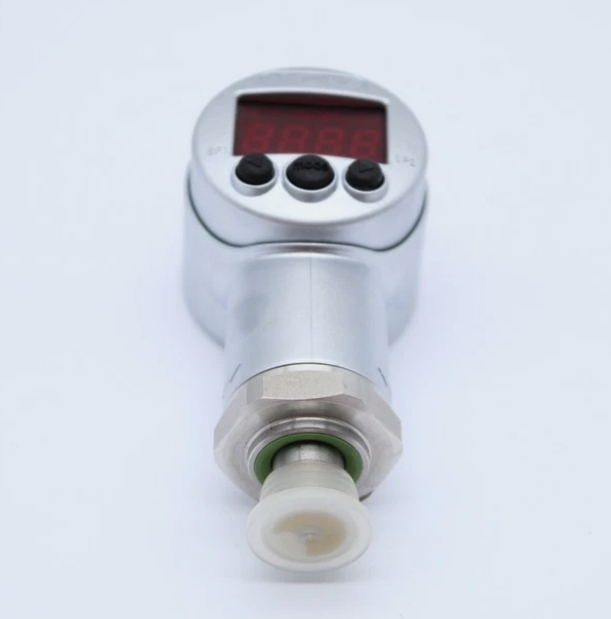

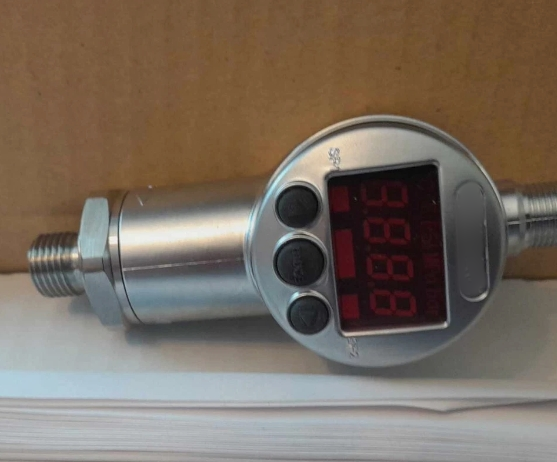

HYDAC EDS 3446-2-0400-000 Electronic pressure switch pressure relay 400 Bar
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
x| Patlama basıncı | 1000 bar | Bağlantı boyutu | G1/4A |
|---|---|---|---|
| Değiştirme akımı | 1,2 A | Maksimum Basınç | 500 çubuk |
EDS 34XX Pressure Switch
The EDS 3400 is a compact electronic pressure switch with integrated digital display for relative pressure measurement in the high pressure range.
The instrument has a measurement cell with thin-fi lm strain gauge on a stainless steel membrane. Depending on the particular version, the instrument can have one or two switching outputs, and there is the option of an additional switchable Analog output signal (4 .. 20 mA or 0 .. 10 V).
A special design feature of the EDS 3400 is that the display can be moved in two planes. The device can be installed in almost any mounting position and the display can be turned to the optimum position without the usual additional expense of a mechanical adapter.
Features:
- Switching mode of the switching outputs adjustable (switch point function or window function)
- Switching direction of the switching outputs adjustable (N/C or N/O function)
- Switch-on and switch-off delay adjustable from 0.00 to 99.99 seconds
- Analog output signal selectable 4 to 20 mA or 0 to 10 V
- Pressure can be displayed in measurement units bar, psi, MPa. The scaling can also be adapted to indicate force, weight, etc..
- Choice of display (actual pressure, peak value, switch point 1, switch point 2, display off)
- Display filter for smoothing the display value during pressure pulsations
