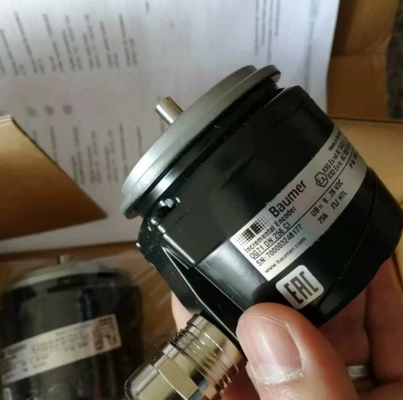

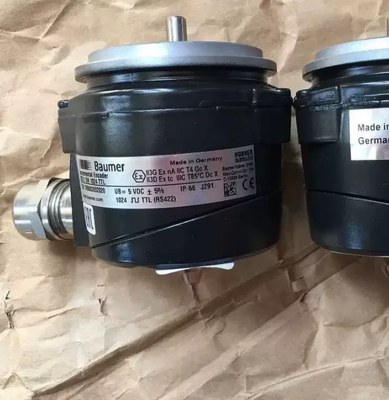

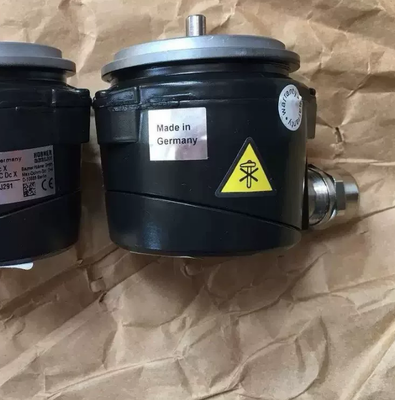

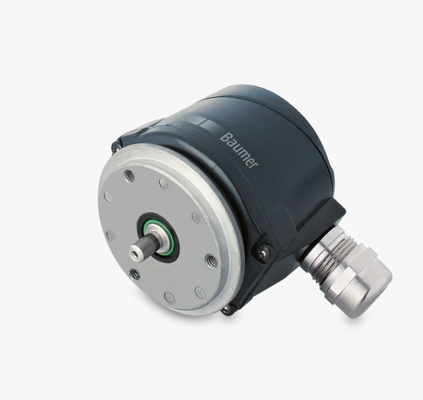

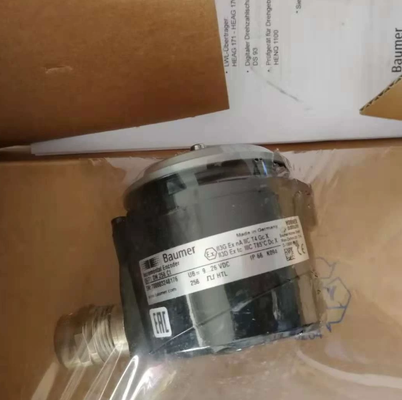

New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed

  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
Menşe yeri Almanya
Marka adı BAUMER
Model numarası BAUMER OG71
Min sipariş miktarı 2
Fiyat USD＄550
Ambalaj bilgileri orijinal ambalaj
Teslim süresi Stokta var
Ödeme koşulları L/C, D/A, D/P, T/T, Western Union
Yetenek temini Yüksek Frekans
Ürün ayrıntıları
Vurgulamak

Baumer OG71 rotary encoder

,

incremental encoder with warranty

,

Baumer Hübner rotary encoder
Mesaj bırakın
Ürün Açıklaması
Technical data - electrical ratings
Voltage supply
  • 9...26 VDC
  • 5 VDC ±5 %
Consumption w/o load
  • ≤100 mA
Pulses per revolution
  • 100 … 1024
Phase shift
  • 90 ° ±20°
Duty cycle
  • 40…60 %
Reference signal
  • Zero pulse, width 90°
Sensing method
  • Optical
Output frequency
  • ≤120 kHz
Output signals
  • A, B, C + inverted
Output stages
  • HTL
  • TTL/RS422
Interference immunity
  • EN 61000-6-2
Emitted interference
  • EN 61000-6-3
Approval
  • CE
  • UL approval / E217823
Technical data - mechanical design
Size (flange)
  • ø58 mm
Shaft type
  • ø6 mm solid shaft
Admitted shaft load
  • ≤30 N axial
  • ≤40 N radial
Flange
  • Synchro flange
Protection EN 60529
  • IP 66
Operating speed
  • ≤10000 rpm (mechanical)
Operating torque typ.
  • 1 Ncm
Rotor moment of inertia
  • 25 gcm²
Material
  • Housing: aluminium die-cast
  • Shaft: stainless steel
Operating temperature
  • -20...+85 °C
Resistance
  • IEC 60068-2-6
  • Vibration 10 g, 10-2000 Hz
  • IEC 60068-2-27
  • Shock 300 g, 6 ms
Explosion protection
  • II 3 G Ex ec IIC T4 Gc X (gas)
  • II 3 D Ex tc IIIC T85°C Dc X (dust)
  • (only with option ATEX)
Connection
  • Connecting terminal
Weight approx.
  • 300 g
