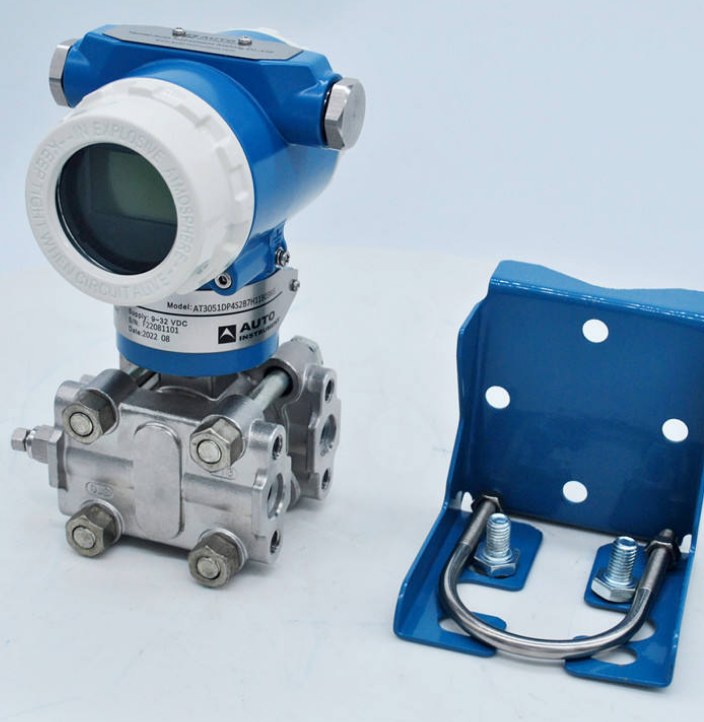

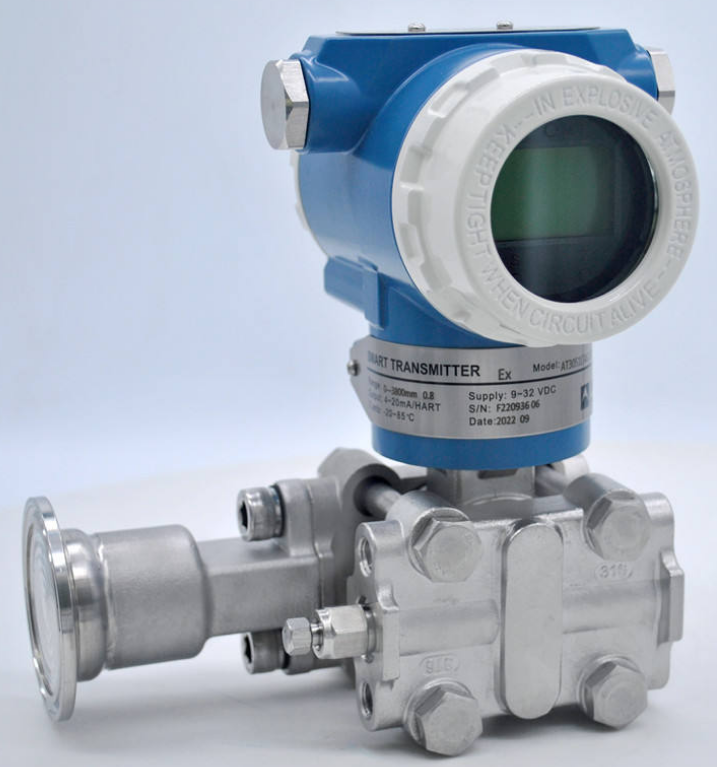

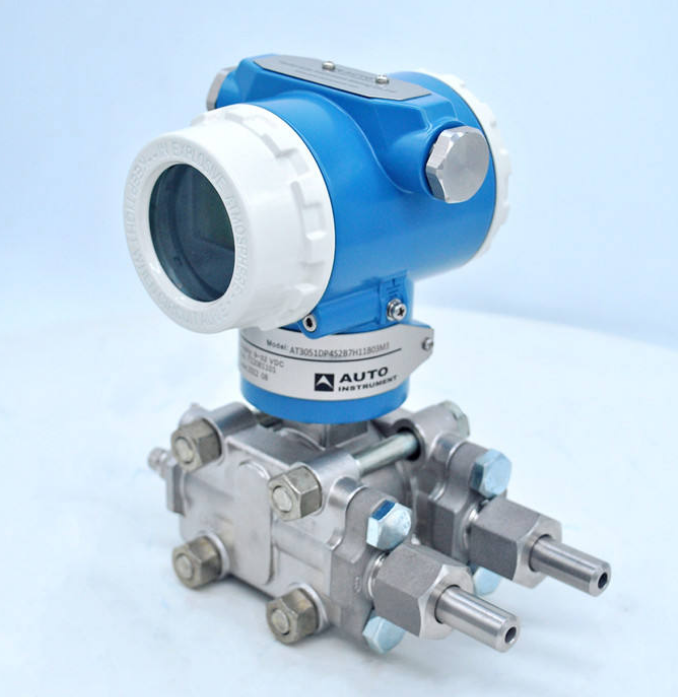

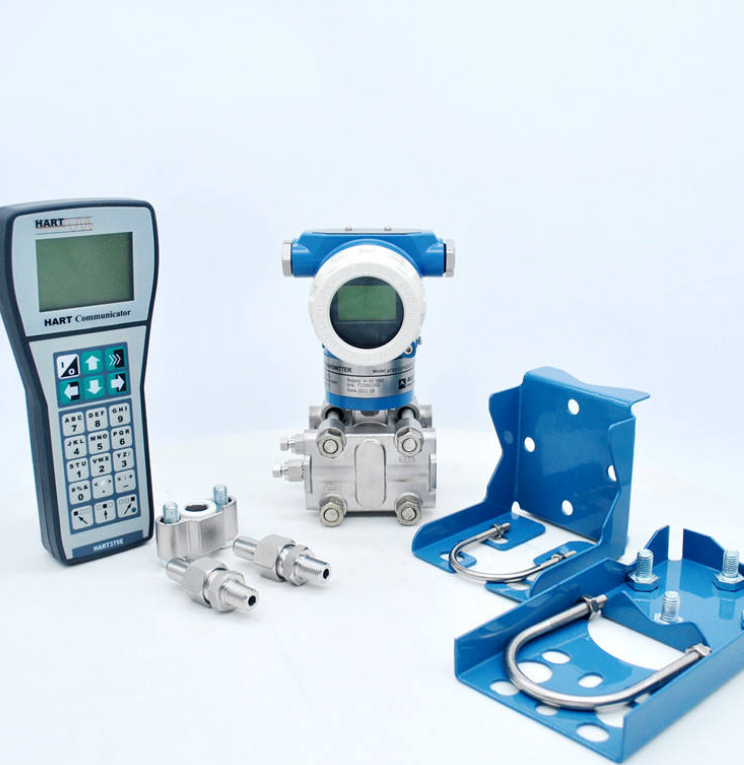

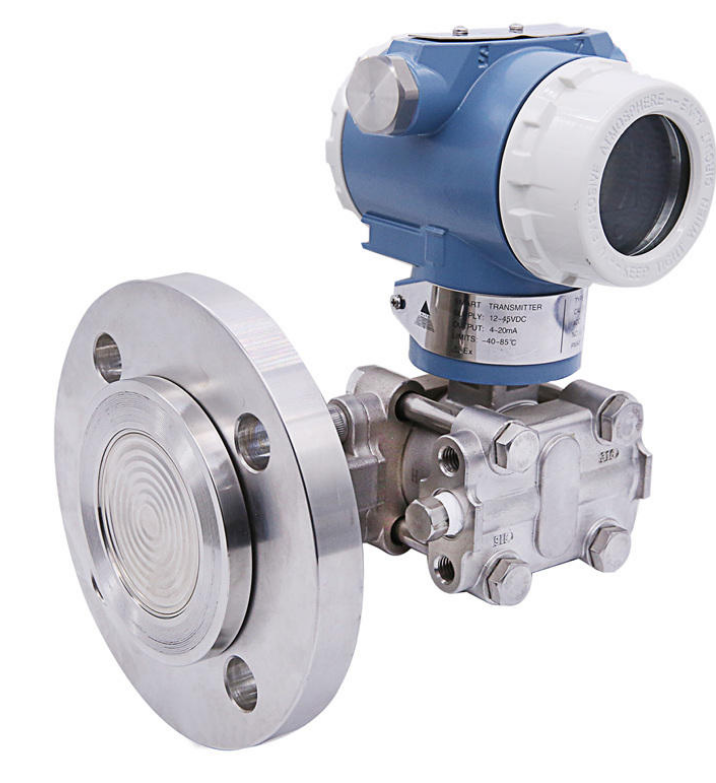

AT3051 Smart Differential Pressure Transmitter with 4-20mA, Pressure Level Transmitter

  • AT3051 Smart Differential Pressure Transmitter with 4-20mA, Pressure Level Transmitter
  • AT3051 Smart Differential Pressure Transmitter with 4-20mA, Pressure Level Transmitter
  • AT3051 Smart Differential Pressure Transmitter with 4-20mA, Pressure Level Transmitter
  • AT3051 Smart Differential Pressure Transmitter with 4-20mA, Pressure Level Transmitter
  • AT3051 Smart Differential Pressure Transmitter with 4-20mA, Pressure Level Transmitter
Menşe yeri ÇİN
Marka adı AUTO
Sertifika -
Model numarası AT3051DP
Min sipariş miktarı 1
Fiyat USD180/PC
Ambalaj bilgileri Orijinal
Teslim süresi 4-6 HAFTA
Ödeme koşulları L/C, D/A, D/P, T/T, Western Union
Yetenek temini 1000
Ürün ayrıntıları
Akım Çıkışı 4 - 20 mA 2 telli Hart Protokolü Protokol Hart
Proses bağlantısı 1/4npt veya 1/2npt
Mesaj bırakın
Ürün Açıklaması

AT3051 Smart Differential Pressure Transmitter with 4-20mA, Pressure Level Transmitter 0AT3051 Smart Differential Pressure Transmitter with 4-20mA, Pressure Level Transmitter 1AT3051 Smart Differential Pressure Transmitter with 4-20mA, Pressure Level Transmitter 2AT3051 Smart Differential Pressure Transmitter with 4-20mA, Pressure Level Transmitter 3AT3051 Smart Differential Pressure Transmitter with 4-20mA, Pressure Level Transmitter 4

Key attributes



Ingress Protection
IP66
warranty
18month
customized support
OEM, ODM, OBM
type
pressure
place of origin
Shandong, China
model number
AT3051DP
brand name
AUTO
Power Supply
24 V DC
Current Output
4 - 20 mA 2 wires Hart Protocol
Accuracy
+/- 0.075% of span
Range
0~0.2 kPa to 0~35MPa
electric interface
1/2NPT OR M20*1.5
Process connection
1/4NPT or 1/2NPT
Flange Joint
M20*1.5" External thread 1/2-14NPT taper pipe thread
Protocol
HART
Certificates
ATEX,CE,ISO9001:2005,SIL3
