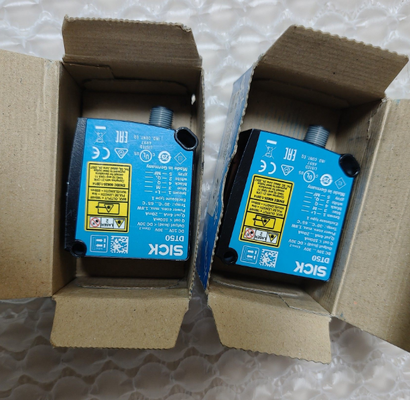

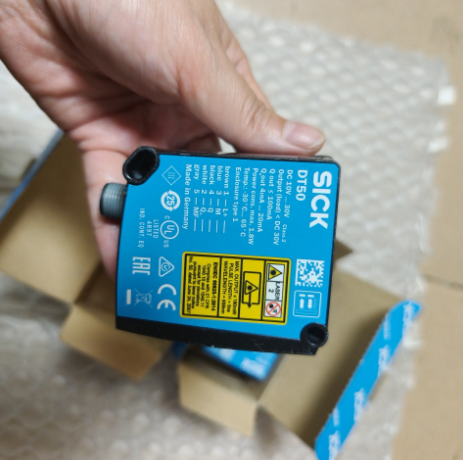

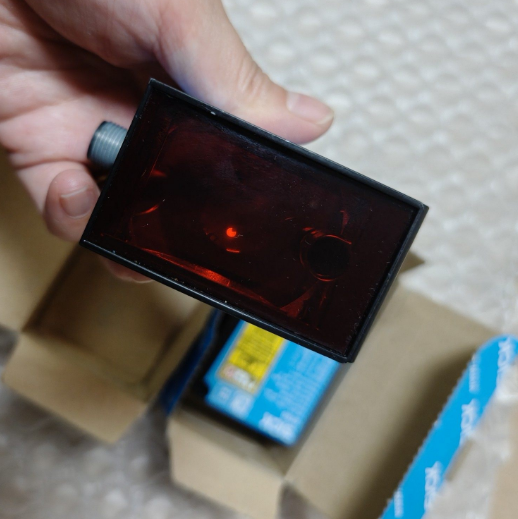

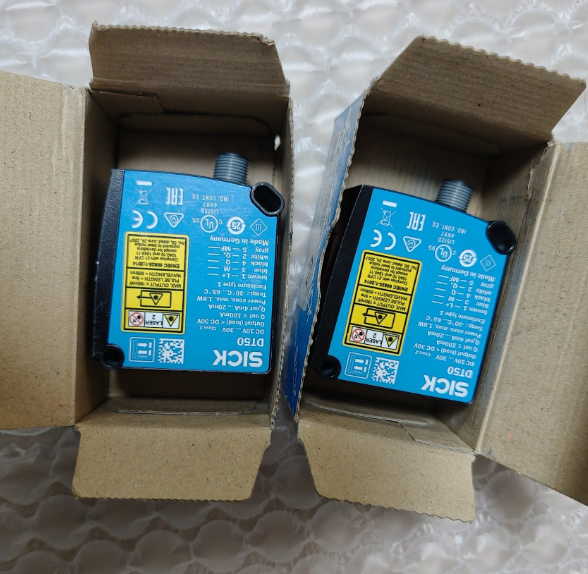

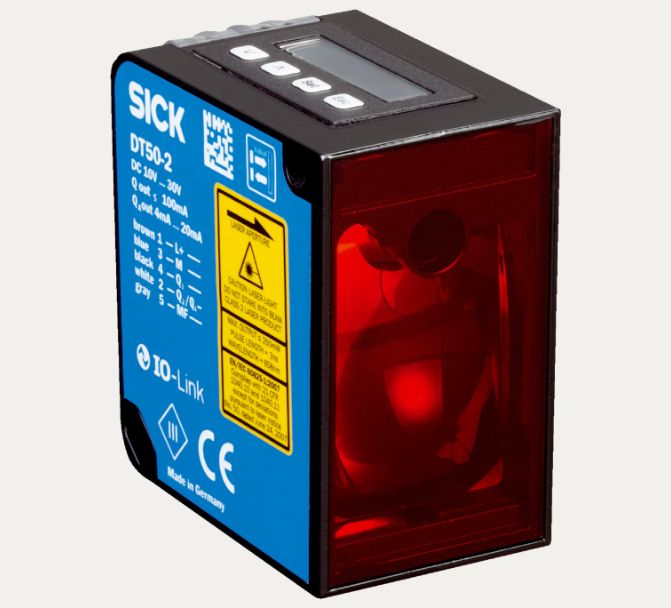

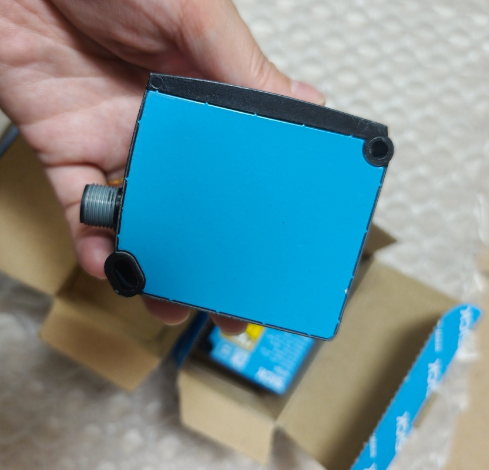

New Original LASER DISTANCE SENSORS SICK DT50-2B215252 In Stock

  • New Original LASER DISTANCE SENSORS SICK DT50-2B215252 In Stock
  • New Original LASER DISTANCE SENSORS SICK DT50-2B215252 In Stock
  • New Original LASER DISTANCE SENSORS SICK DT50-2B215252 In Stock
  • New Original LASER DISTANCE SENSORS SICK DT50-2B215252 In Stock
  • New Original LASER DISTANCE SENSORS SICK DT50-2B215252 In Stock
  • New Original LASER DISTANCE SENSORS SICK DT50-2B215252 In Stock
Menşe yeri Almanya
Marka adı SICK
Model numarası SICK DT50-2B215252
Min sipariş miktarı 2
Fiyat USD＄490
Ambalaj bilgileri orijinal ambalaj
Teslim süresi Stokta var
Ödeme koşulları L/C, D/A, D/P, T/T, Western Union
Yetenek temini Yüksek Frekans
Ürün ayrıntıları
Mesaj bırakın
Ürün Açıklaması
Measuring range

200 mm ... 30,000 mm, 90% remission factor 1) 2)

200 mm ... 17,000 mm, 18% reflection factor

200 mm ... 10,000 mm, 6% remission factor
Target Natural objects
Resolution 100 µm
Repeatability ≥ 0.5 mm 2) 3) 4)
Measurement accuracy ± 7 mm 4)
Response time 0.83 ms ... 75 ms, 0.83 ms / 3.33 ms / 8.33 ms / 25 ms / 75 ms 5) 6)
Switching frequency 1,000 Hz/250 Hz/100 Hz/33 Hz/11 Hz 5) 6)
Output time 0.33 ms/1.33 ms/3.33 ms/10 ms/30 ms 5) 7)
Emitted beam
Light source Laser, red 8)
Type of light Visible red light
Typ. light spot size (distance) 10 mm x 10 mm (at 10 m)
Key laser figures
Normative reference IEC 60825-1:2014, EN 60825-1:2014
Laser class 2 9)
Average laser service life (at 25 °C) 100,000 h



Supply voltage UB DC 10 V ... 30 V 1) 2)
Power consumption ≤ 1.7 W 3)
Ripple ≤ 5 Vpp 4)
Initialization time ≤ 300 ms
Warm-up time ≤ 15 min
Display 3 x LED, LC display
Enclosure rating

IP65

IP67
Protection class III
Connection type
  Male connector, M12, 5-pin
