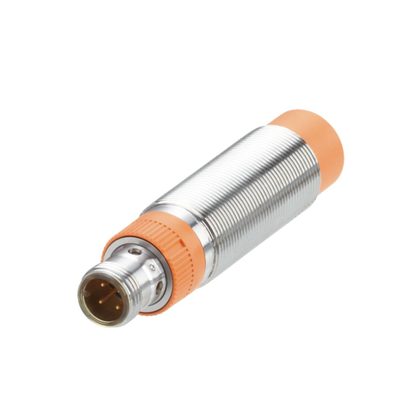

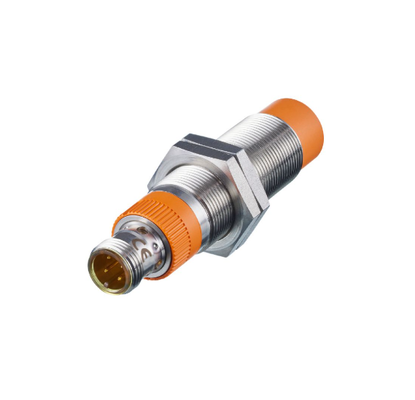

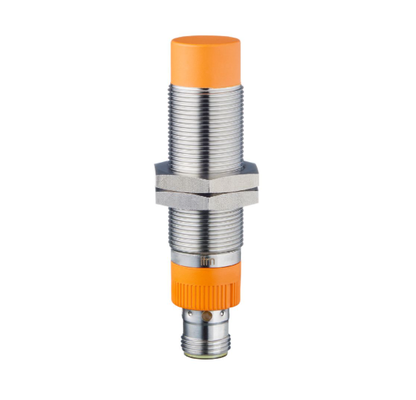

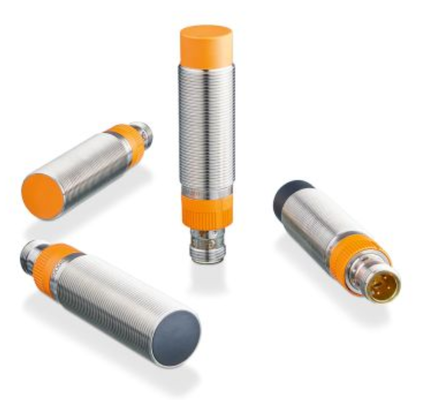

German Compact Evaluation Unit for Speed Monitoring with IO-Link and Configurable Outputs

  • German Compact Evaluation Unit for Speed Monitoring with IO-Link and Configurable Outputs
  • German Compact Evaluation Unit for Speed Monitoring with IO-Link and Configurable Outputs
  • German Compact Evaluation Unit for Speed Monitoring with IO-Link and Configurable Outputs
  • German Compact Evaluation Unit for Speed Monitoring with IO-Link and Configurable Outputs
  • German Compact Evaluation Unit for Speed Monitoring with IO-Link and Configurable Outputs
Menşe yeri Almanya
Marka adı IFM
Model numarası DI6004
Min sipariş miktarı 2
Fiyat USD＄145
Ambalaj bilgileri orijinal ambalaj
Teslim süresi Stokta var
Ödeme koşulları L/C, D/A, D/P, T/T, Western Union
Yetenek temini Yüksek Frekans
Ürün ayrıntıları
Vurgulamak

Compact Evaluation Unit

,

IO-Link Speed Monitor

,

Configurable Programmable Logic Controller
Mesaj bırakın
Ürün Açıklaması

Product characteristics

Electrical design PNP/NPN; (configurable)
Output function normally open / closed; (configurable)
Sensing range[mm] 12
Communication interface IO-Link
Housing Threaded type
Dimensions[mm]

M18 x 1 / L = 75



Electrical data

Operating voltage[V] 10...30 DC
Current consumption[mA] < 15
Protection class II
Reverse polarity protection yes



Pulse output / Switching output (OUT2)
Output signal pulse signal; switching signal; (configurable)
Permanent current rating of switching output DC[mA] 100
Switching frequency DC[Hz] < 500
Pulse output external evaluation of the damping pulses
