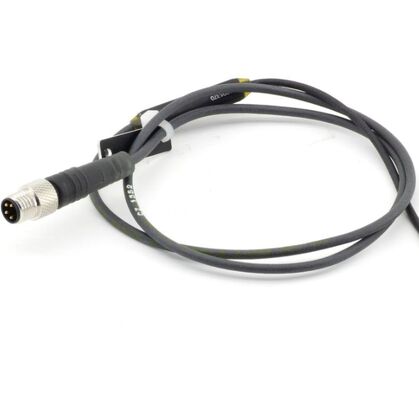

Original Schunk MMSK 22-S-PNP-SA 0301044 Electronic magnetic switch low-cost pneumatic sensor

  • Original Schunk MMSK 22-S-PNP-SA 0301044 Electronic magnetic switch low-cost pneumatic sensor
  • Original Schunk MMSK 22-S-PNP-SA 0301044 Electronic magnetic switch low-cost pneumatic sensor
  • Original Schunk MMSK 22-S-PNP-SA 0301044 Electronic magnetic switch low-cost pneumatic sensor
  • Original Schunk MMSK 22-S-PNP-SA 0301044 Electronic magnetic switch low-cost pneumatic sensor
  • Original Schunk MMSK 22-S-PNP-SA 0301044 Electronic magnetic switch low-cost pneumatic sensor
Menşe yeri Almanya
Marka adı Schunk
Model numarası MMSK 22-S-PNP-SA
Min sipariş miktarı 2
Fiyat USD＄75
Ambalaj bilgileri Orijinal ambalaj
Teslim süresi 10 gün
Ödeme koşulları Özelleştirilmiş
Yetenek temini Yüksek Frekans
Ürün ayrıntıları
Mesaj bırakın
Ürün Açıklaması
Measuring principle magnetic
Switching function Closer
Type of switching PNP
Number of switching points 1
Min. ambient temperature [°C] -20.0
Max. ambient temperature [°C] 80.0
LED display in sensor yes
Type of voltage DC
Nominal voltage 24.0
Min. operating voltage 10.0
Max. operating voltage 30.0
Voltage drop [V] 2.0
Max. switching current 0.05
Short circuit protection yes
Protected against polarity reversal yes
Housing material PA
Cable connector/cable end open wire strands
Cable length L [cm] 200.0
Cable diameter D [mm] 2.2
Cable design (wire cross section/number of wires) 3x 0,05mm2
Cable sheath material PUR
Min. bending radius (dynamic) [mm] 22.0
Min. bending radius (static) [mm] 11.0
Weight [kg] 0.02
Protection class IP (sensor, plugged) 67
Protection class III
Version with lateral cable outlet yes
