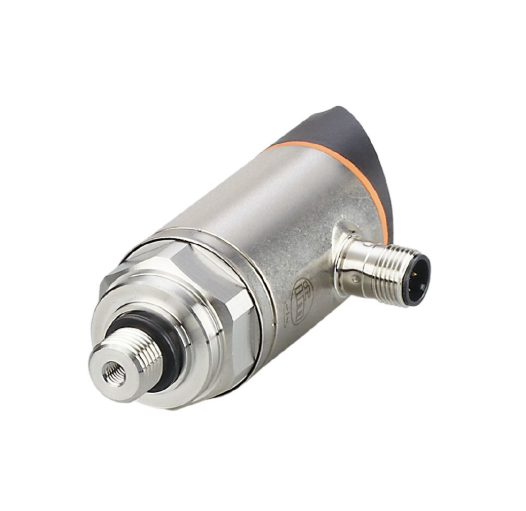

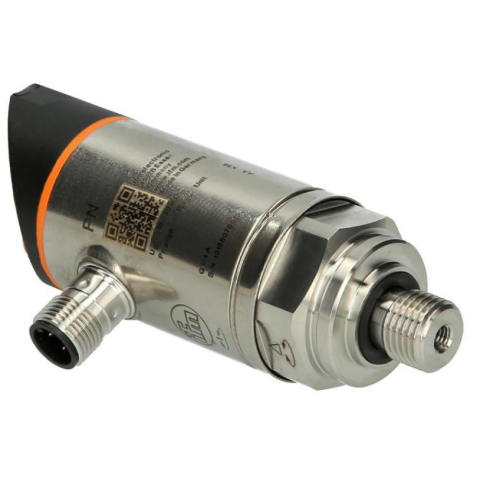

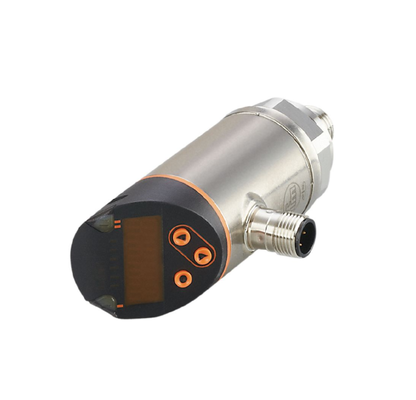

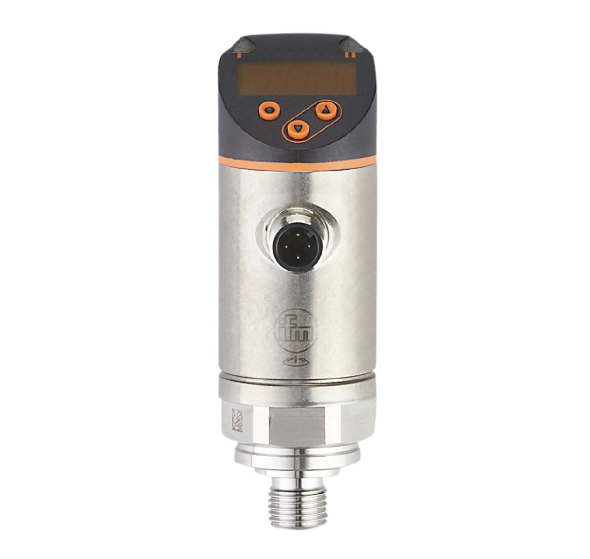

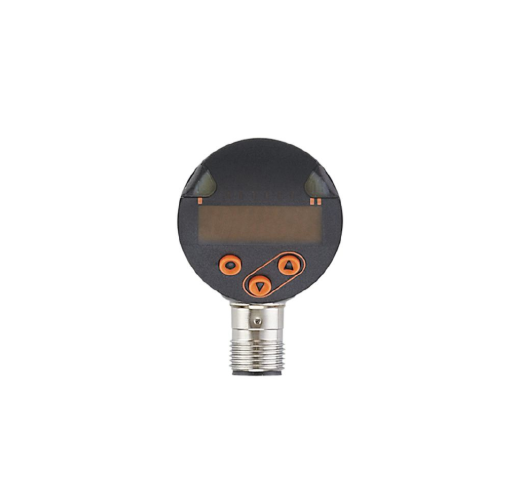

New, original, German Pressure sensor with display IFM PN7593 in stock

  • New, original, German Pressure sensor with display IFM PN7593 in stock
  • New, original, German Pressure sensor with display IFM PN7593 in stock
  • New, original, German Pressure sensor with display IFM PN7593 in stock
  • New, original, German Pressure sensor with display IFM PN7593 in stock
  • New, original, German Pressure sensor with display IFM PN7593 in stock
Menşe yeri Almanya
Marka adı IFM
Model numarası PN7593
Min sipariş miktarı 2
Fiyat USD＄166
Ambalaj bilgileri Orijinal ambalaj
Teslim süresi Stokta var
Ödeme koşulları Özelleştirilmiş
Yetenek temini Yüksek Frekans
Ürün ayrıntıları
Mesaj bırakın
Ürün Açıklaması

Electrical data

Operating voltage[V] 18...30 DC; (to SELV/PELV)
Current consumption[mA] < 35
Min. insulation resistance[MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Power-on delay time[s] < 0.3
Integrated watchdog

yes





Outputs

Total number of outputs 2
Output signal switching signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC[Hz] < 170
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
