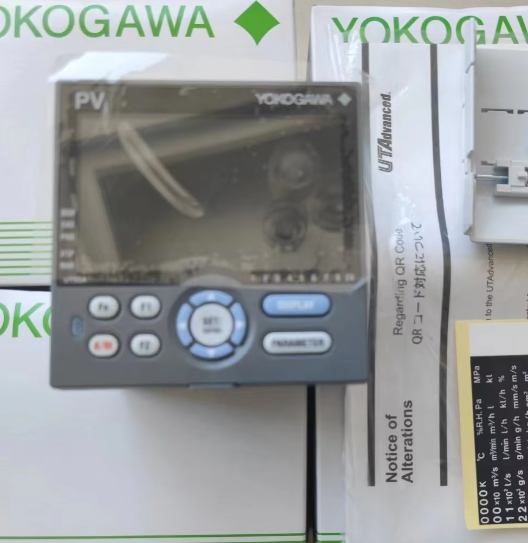

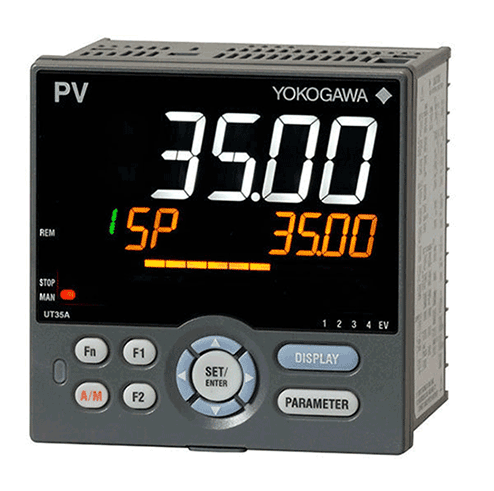

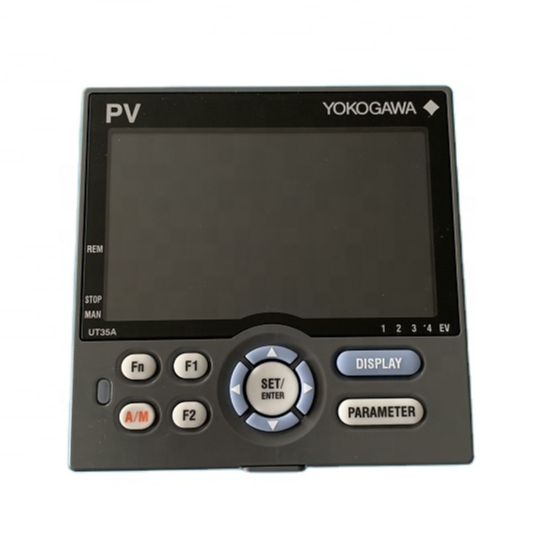

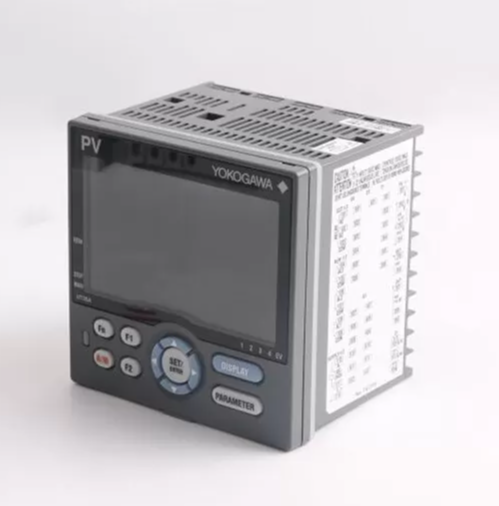

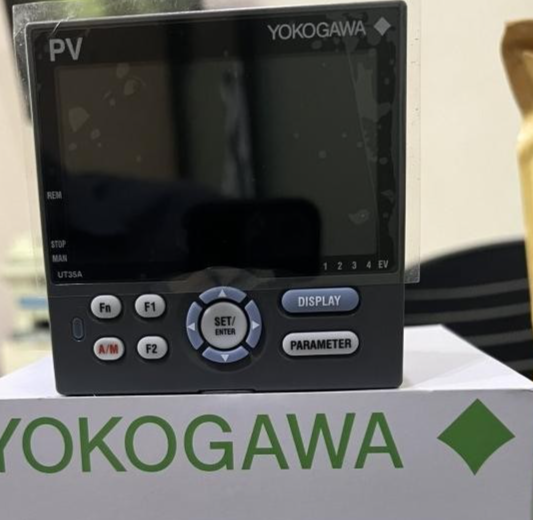

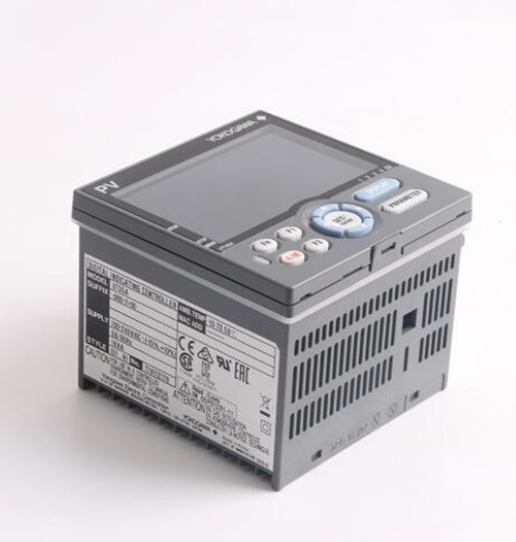

New Original YOKOGAWA UT35A 101-01-00 UT35A1010100 In Stock

  • New Original YOKOGAWA UT35A 101-01-00 UT35A1010100 In Stock
  • New Original YOKOGAWA UT35A 101-01-00 UT35A1010100 In Stock
  • New Original YOKOGAWA UT35A 101-01-00 UT35A1010100 In Stock
  • New Original YOKOGAWA UT35A 101-01-00 UT35A1010100 In Stock
  • New Original YOKOGAWA UT35A 101-01-00 UT35A1010100 In Stock
  • New Original YOKOGAWA UT35A 101-01-00 UT35A1010100 In Stock
Menşe yeri Japonya
Marka adı YOKOGAWA
Model numarası UT35A 101-01-00
Min sipariş miktarı 2
Fiyat USD＄403
Ambalaj bilgileri Orijinal ambalaj
Teslim süresi Stokta var
Ödeme koşulları Özelleştirilmiş
Yetenek temini 20 adet
Ürün ayrıntıları
Vurgulamak

YOKOGAWA UT35A PLC module

,

Original UT35A1010100 controller

,

Programmable Logic Controller in stock
Mesaj bırakın
Ürün Açıklaması

UT35A and UT32A Temperature Controller Features

ITEM UT35A UT32A
PV input Input type 1 Universal input (TC, RTD, mV, V, mA)
Indication accuracy ±0.1% of F.S.
Control scan period   200 msec
PV/SP data display   14-segment, 5 digits, Bar graph LCD display
Control outputs (MV) Type Relay, Voltage Pulse, Current
Algorithm ON/OFF, PID (Continuous, Time-proportional), Heating/Cooling, Position-proportional
Digital inputs Number 2 (Std) 7 (Max) 2 (Std) 4 (Max)
Type SP No.Change, PID No. Change, A/M Change, etc
Digital outputs Number 3 (Std) 8 (Max) 3 (Std) 5 (Max)
Function PV High, PV Low, Dev High, etc
Current trans input (option) Number 2
Retransmission Number 1
Type PV, SP, OUT, etc
Remote (aux.) input (option) Number - -
Type -
Loop power supply (LPS) (option) Number 1
Voltage 21.6 to 28.0 VDC
Communication (option) Number 1 1
Type RS-485, Ethernet, PROFIBUS-DP, CC-Link, DeviceNet RS-485, CC-Link　
Other specifications Power supply 100 to 240 VAC (+10%, -15%) or 24 VAC/DC (+10%, -15%) (option)
Power consumption Max 18 VA Max 15 VA
Mass Max 0.5 kg
