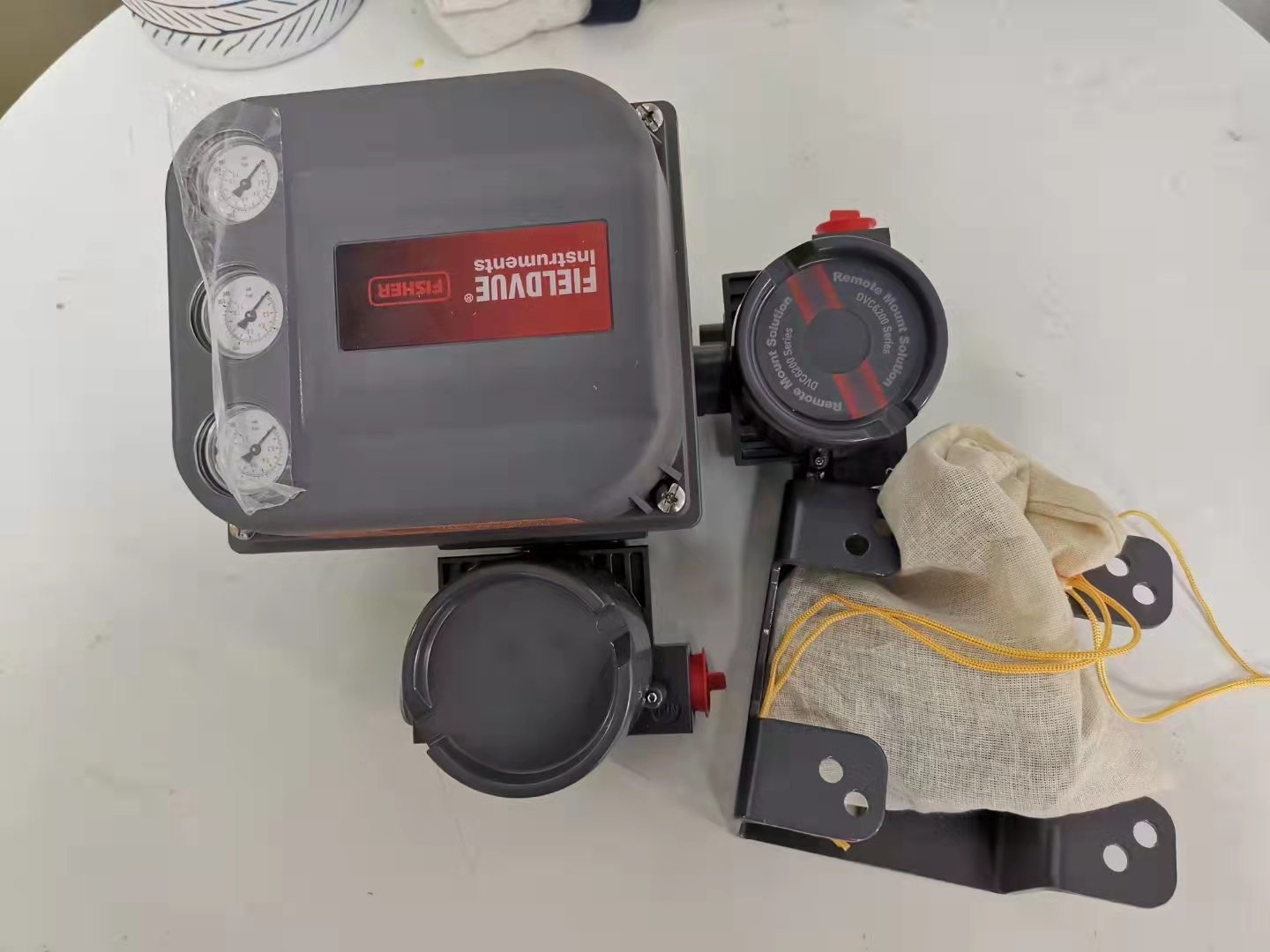

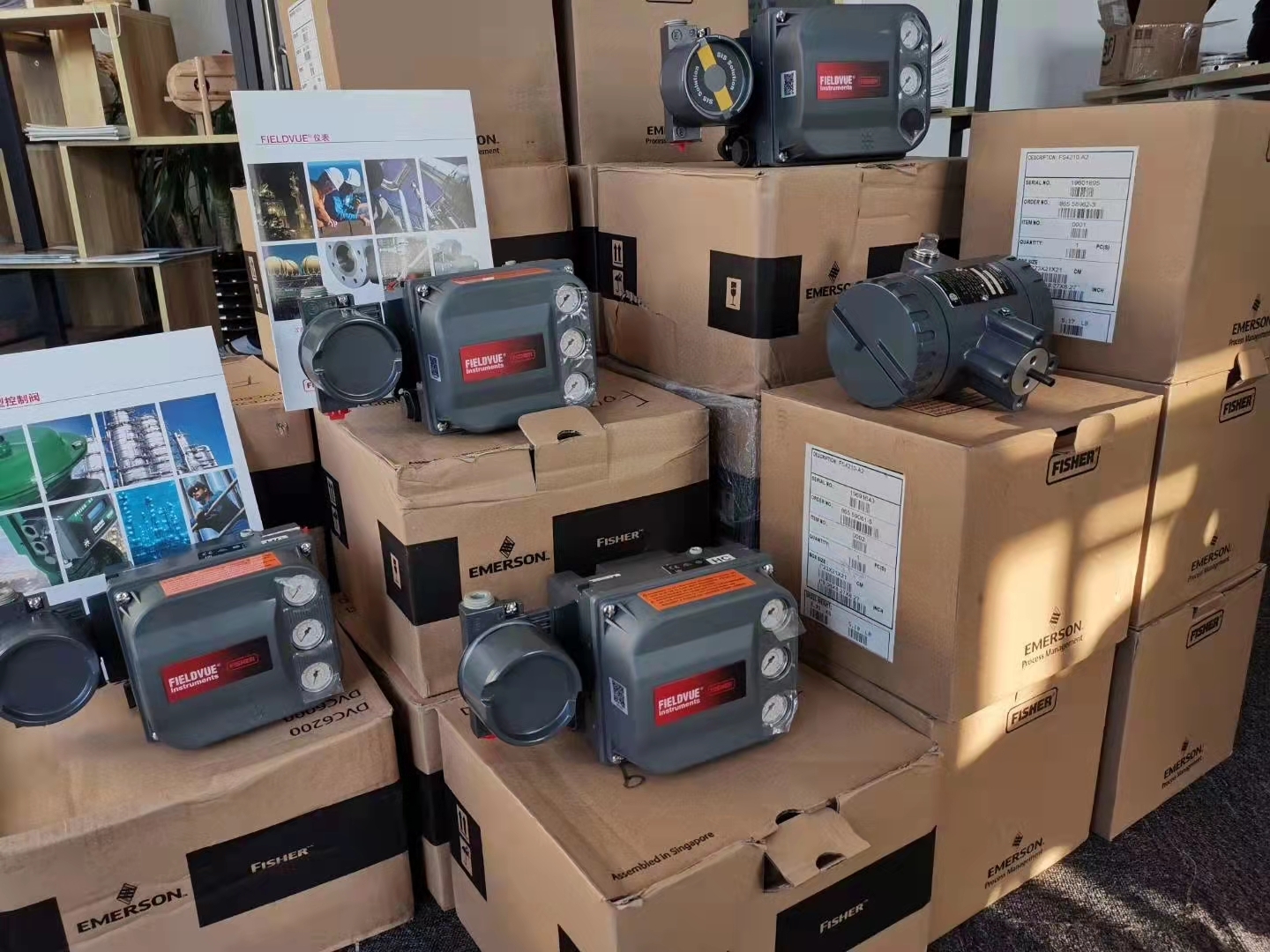

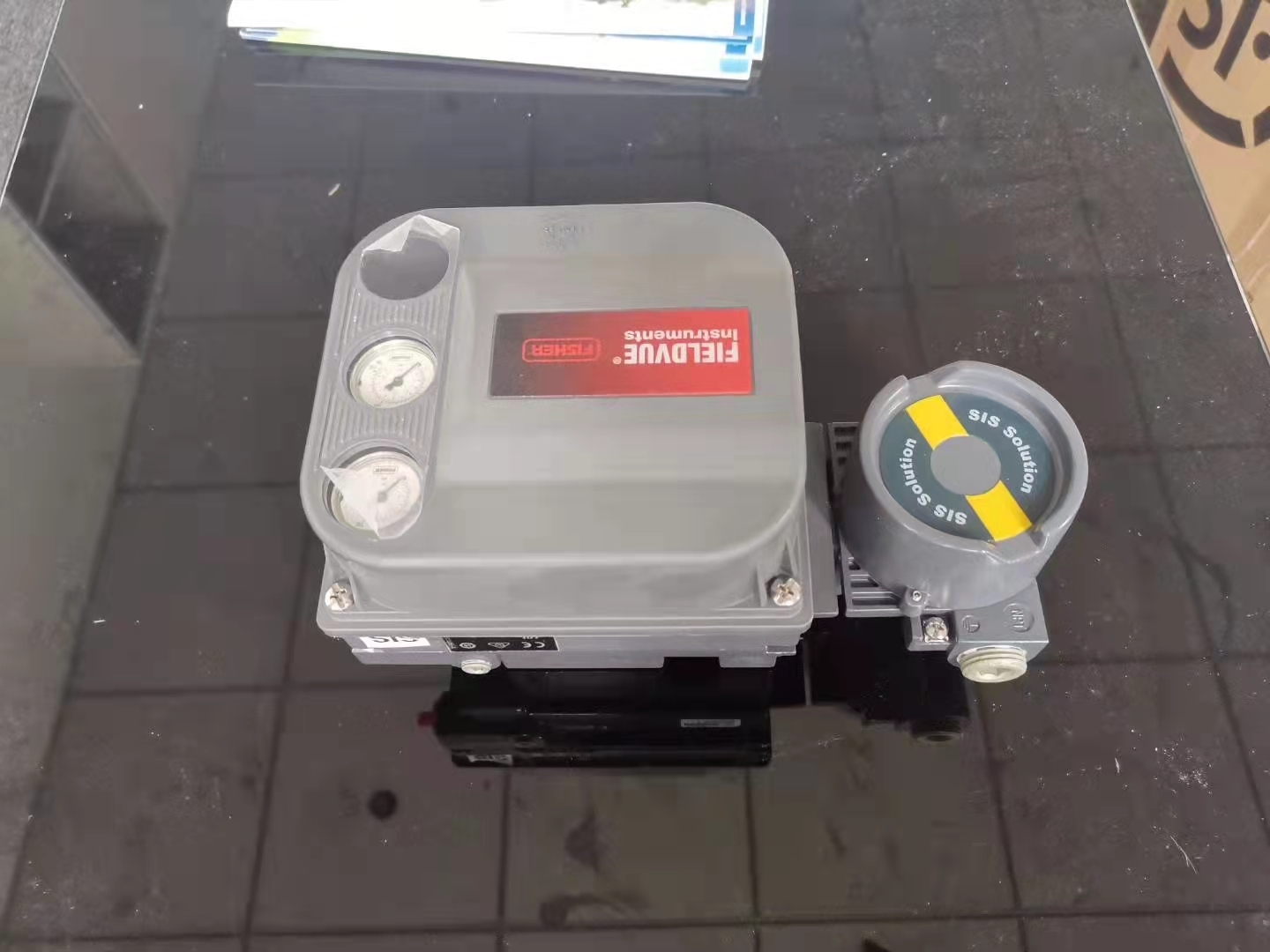

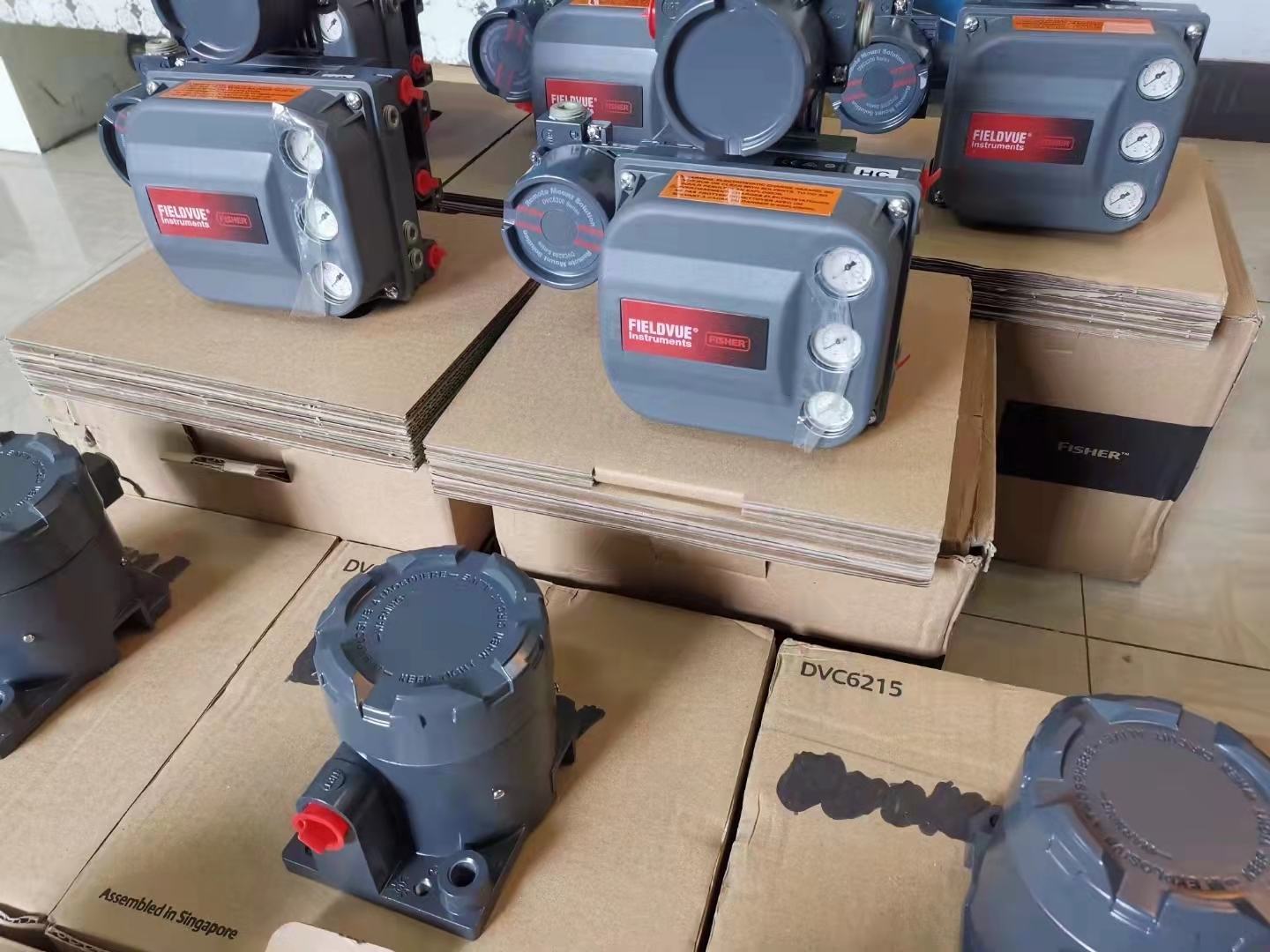

Fisher FIELDVUE DVC6200 Digital Valve Controllers

  • Fisher FIELDVUE DVC6200 Digital Valve Controllers
  • Fisher FIELDVUE DVC6200 Digital Valve Controllers
  • Fisher FIELDVUE DVC6200 Digital Valve Controllers
  • Fisher FIELDVUE DVC6200 Digital Valve Controllers
Menşe yeri Amerika
Marka adı Emerson Fisher
Sertifika CE
Model numarası Valf Konumlandırıcı 6200HC
Minimum Order Quantity 1
Fiyat $1350-$2000PCS
Packaging Details Original Carton packaging
Teslim süresi 9-11 iş günü
Ödeme koşulları %100 TT, L/C, Western Union
Supply Ability 100PCS / Month
Ürün ayrıntıları
Tek paket boyutu 40X40X40cm Ürün Tipi Vavel Konumlandırıcı DVC6200
Koruma Sınıfı IP 67 / NEMA 4X Muhafaza malzemesi Alüminyum Döküm Veya 316SS.
Nakliye Ağırlığı OEM / DOM Montaj Braketi Standart Açılı stroklu montaj braketi
Çalışma sıcaklığı -25°C ila +60°C Ürün adı Dijital Valf Denetleyicileri
Mesaj bırakın
Ürün Açıklaması



Fisher FIELDVUE DVC6200 Digital Valve Controllers 0

Fisher® FIELDVUE™ DVC6200 digital valve controllers are HART® communicating, microprocessor-based current-to-pneumatic instruments with linkage-less, non-contact travel feedback. Three important functions are performed by the DVC6200 instrument:

  • Traditional positioning of a control valve by converting the 4-20mA DC input signal from the process controller to a pneumatic output signal to the actuator.
  • Automatic calibration and configuration utilizing the power of microprocessor technology.
  • Communication capability via the HART communications protocol to provide instrument and valve diagnostic information.

This instrument provides one platform for any pneumatic actuator application. The DVC6200 can be installed on sliding-stem, rotary, single- or double-acting actuators







Features:

  • Product Name: Pneumatic Valve Positioner
  • Also known as: Digital Valve Controllers
  • Enclosure Material: Aluminum Diecasting or 316SS
  • Minimum Control Current: 4-20mA Feedback
  • Operating Temperature Range: -25°C to +60°C
  • Single Package Size: 40 x 40 x 40 cm
  •


Technical Parameters:

Mounting Bracket Standard Angular Stroke Mounting Bracket
Protection Class IP 67 / NEMA 4X
Product Type Valve Positioner DVC6200
Product Name Digital Valve Controllers
Single Package Size 40X40X40 Cm
Minimum Control Current 4-20mA Feedback
Operating Temperature -25°C To +60°C
Shipping Weight 6 Kg
Enclosure Material Aluminum Diecasting Or 316SS


Packing and Shipping:

Product Packaging:

The Pneumatic Valve Positioner is carefully packaged to ensure protection during transportation and handling. Each unit is placed in a custom-fitted foam insert to prevent movement and absorb shocks. The device is first wrapped in an anti-static bag to protect sensitive components from electrostatic discharge. It is then enclosed in a sturdy, corrugated cardboard box with clear labeling including product details, handling instructions, and safety warnings. Additional cushioning materials are included as needed based on order size and shipping method.

Shipping:

All Pneumatic Valve Positioners are shipped via trusted carriers with tracking and insurance options available. Shipping methods include standard ground, expedited air freight, or express courier services depending on customer requirements. Each shipment undergoes a thorough inspection to verify order accuracy and package integrity before dispatch. For international shipments, all necessary customs documentation and export compliance paperwork are prepared to ensure smooth delivery. Customers receive confirmation and tracking information once their order has been dispatched.
