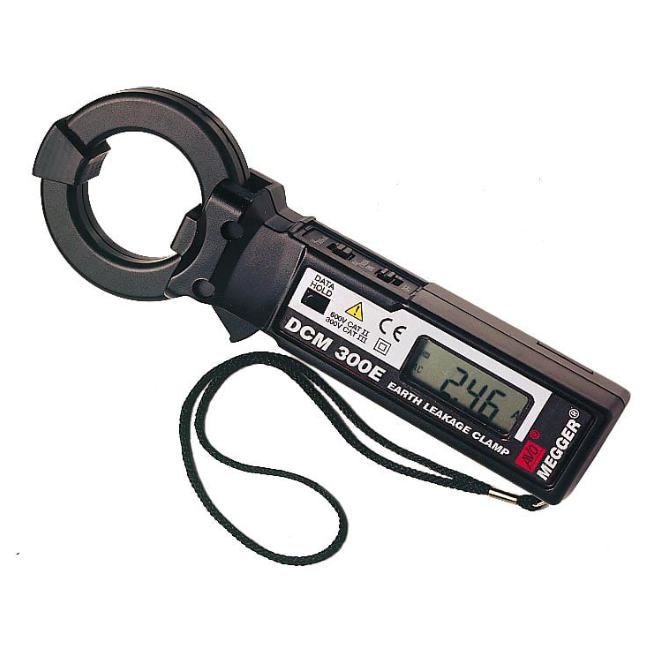

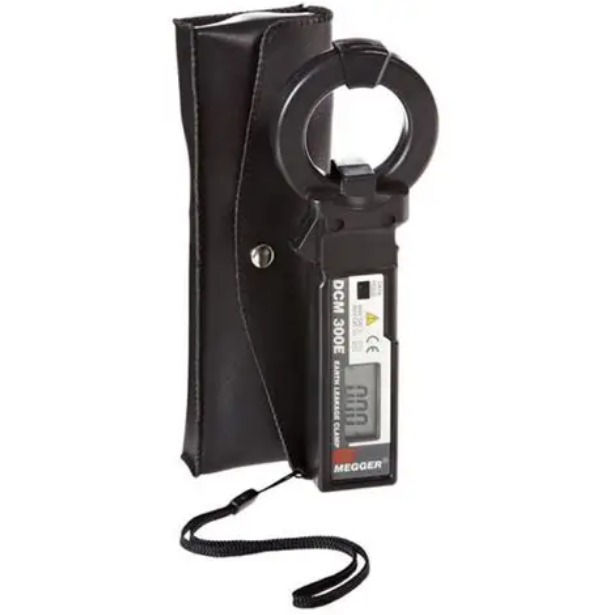

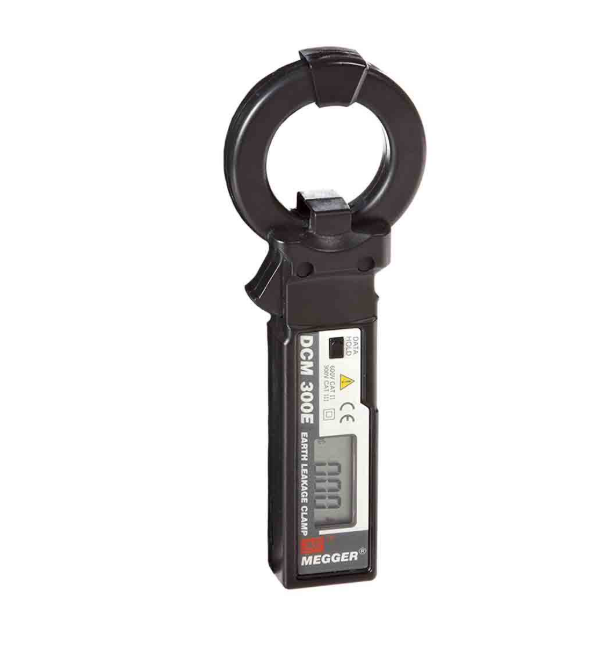

Megger DCM300E Clamp Meter 300 A ac CAT III

  • Megger DCM300E Clamp Meter 300 A ac CAT III
  • Megger DCM300E Clamp Meter 300 A ac CAT III
  • Megger DCM300E Clamp Meter 300 A ac CAT III
  • Megger DCM300E Clamp Meter 300 A ac CAT III
Menşe yeri Amerika
Marka adı Megger
Sertifika CCC.CE
Model numarası DCM300E
Min sipariş miktarı 1
Fiyat USD$520/PC
Ambalaj bilgileri Orijinal Yeni
Teslim süresi 3 gün
Ödeme koşulları L/C, T/T, Western Union
Yetenek temini 10 adet
Ürün ayrıntıları
Ürün Tipi Pens Metre AC Akım Doğruluğu ±%1,2 rdg + 5 Hane
Maksimum çene açılışı 32 mm AC Akım çözünürlüğü 10μA
Maksimum Çalışma Sıcaklığı 40°c Genişlik 64 mm
Yükseklik 176mm ağırlık 2 kg
Mesaj bırakın
Ürün Açıklaması

Megger DCM300E Clamp Meter 300 A ac CAT III

  • 0.01 mA resolution
  • EMC and IEC61010-2-032 compliance
  • 30 mA, 300 mA, 30 A, and 300 A range
  • 40 mm jaw size
  • Analogue bar graph and digital display

The DCM300E earth leakage clamp meter has been designed primarily to check earth leakage currents with a dedicated 30 mA range providing resolution down to 10 µA.

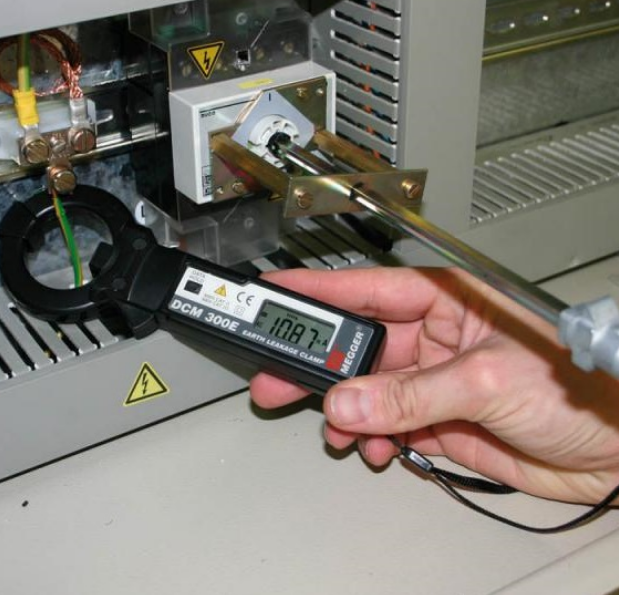

The capabilities of the DCM300E extend to measuring currents of up to 300 A AC, making it a highly versatile instrument capable of taking current measurements in a wide variety of situations and applications. For example, a typical application for the DCM300E would be the measurement of earth leakage current in a circuit where the RCD or GFCI repeatedly trips out. The measured result will quickly identify whether an excessive leakage current is causing the RCD or GFCI to trip, or if the RCD or GFCI itself is faulty.
