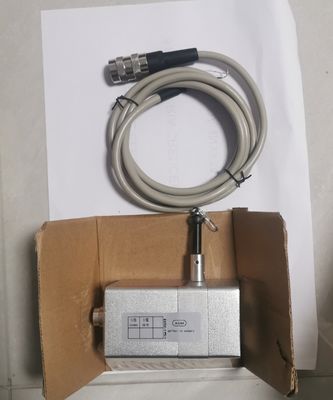

Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price

  • Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price
  • Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price
  • Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price
  • Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price
  • Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price
Menşe yeri Almanya
Marka adı ASM
Sertifika -
Model numarası WS10-250-420A-L10-SB0-M12
Min sipariş miktarı 1
Fiyat USD120/PC
Ambalaj bilgileri Orijinal
Teslim süresi 2 hafta
Ödeme koşulları L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini 1000

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Warrany 1 yıl Sıcaklık aralığı -20 ... +85 ° C
Ağırlık Yaklaşık. 550 g Bağlantı Konektör m12, 8 pin
Mesaj bırakın
Ürün Açıklaması

WS10 - Cable Extension Position Sensor Version with Analog output, SSI output Specifications Order options Measurement range 100 / 125 / 375 / 500 / 750 / 1000 / 1250 mm 100 / 125 / 375 / 500 / 750 / 1000 / 1250 Resolution Analog: quasi infinite Output Potentiometer 1 kΩ Voltage 0 ... 10 V Current 4 ... 20 mA, 2 wire Current 4 ... 20 mA, 3 wire Current output, programmable Voltage output, programmable Signal conditioner SSI 12 bit Signal conditioner SSI 14 bit Signal conditioner SSI 16 bit R1K 10V 420A 420T PMUI PMUV ADSI ADSI14 ADSI16 Linearity ±0.10% f.s. (standard) ±0.05% f.s. (optional) L10 L05 Sensing device Precision potentiometer Material Aluminum measuring cable: stainless steel Protection class IP65 (with mating connector only) Cable fixing M4 cable fixing Cable clip M4 SB0 Connection Connector M12, 8 pin M12 Temperature range -20 ... +85 °C Weight approx. 550 g EMC DIN EN 61326-1:2013 Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price 0Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price 1Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price 2Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price 3Germany Cable Extension Position Sensors WS10-250-420A-L10-SB0-M12 With Best Price 4
