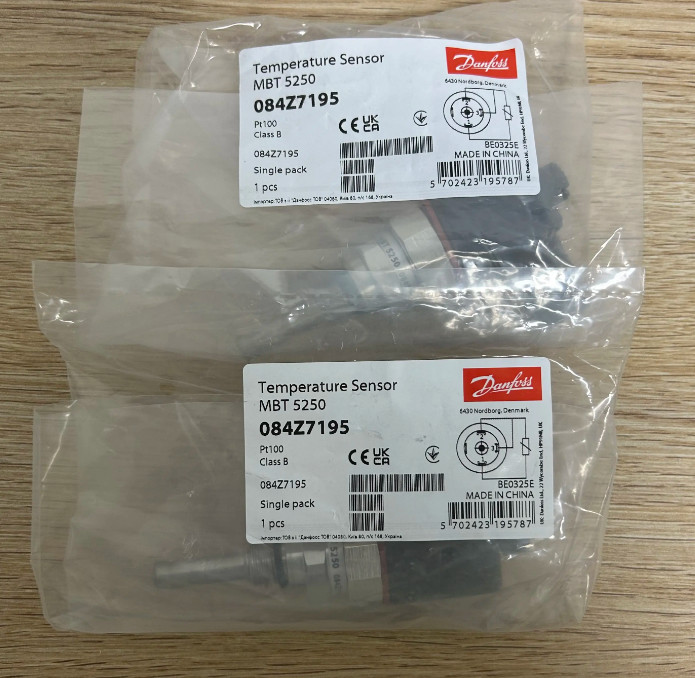

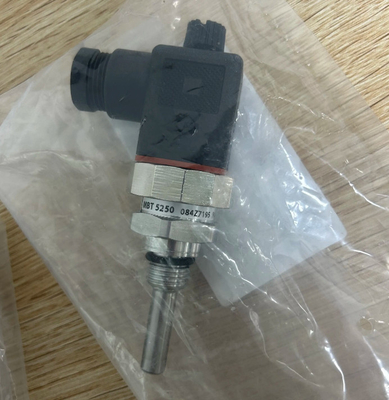

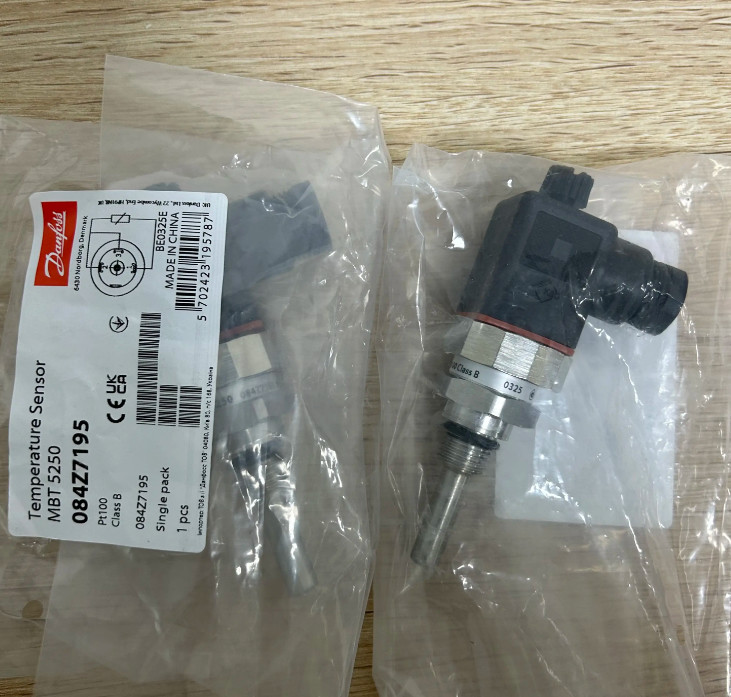

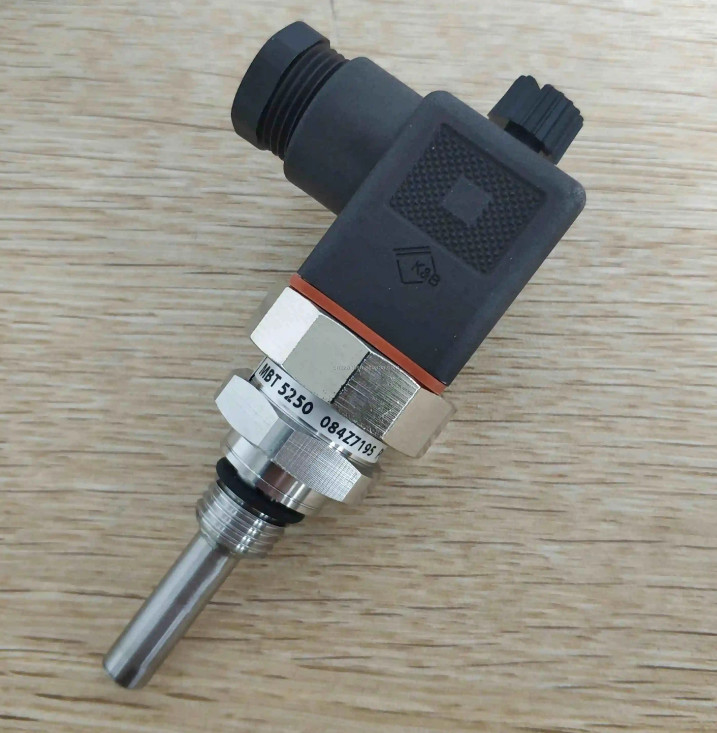

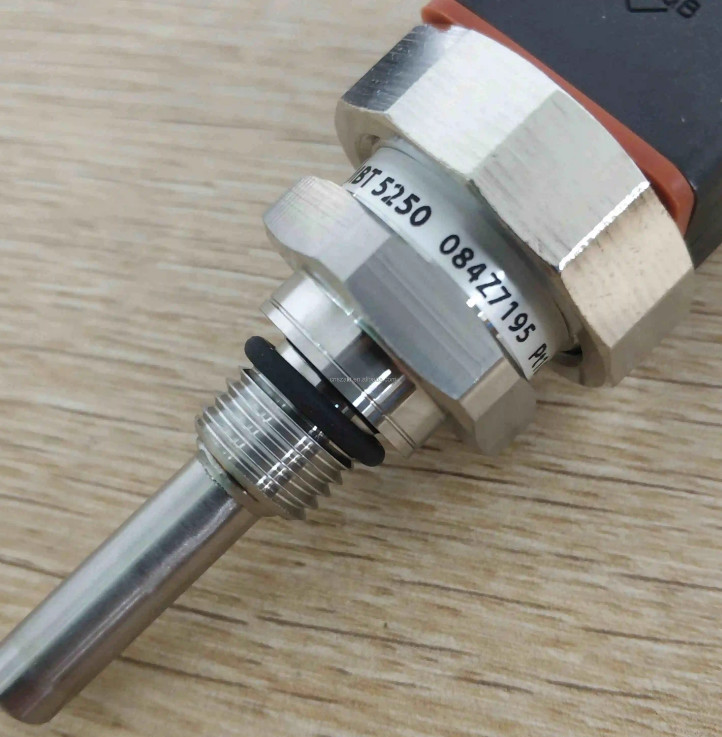

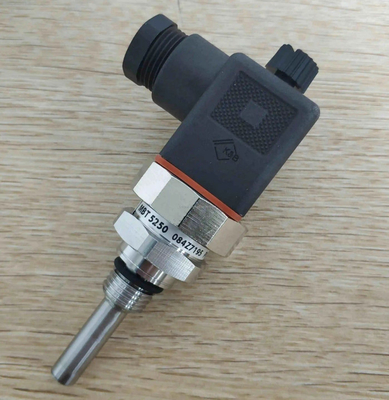

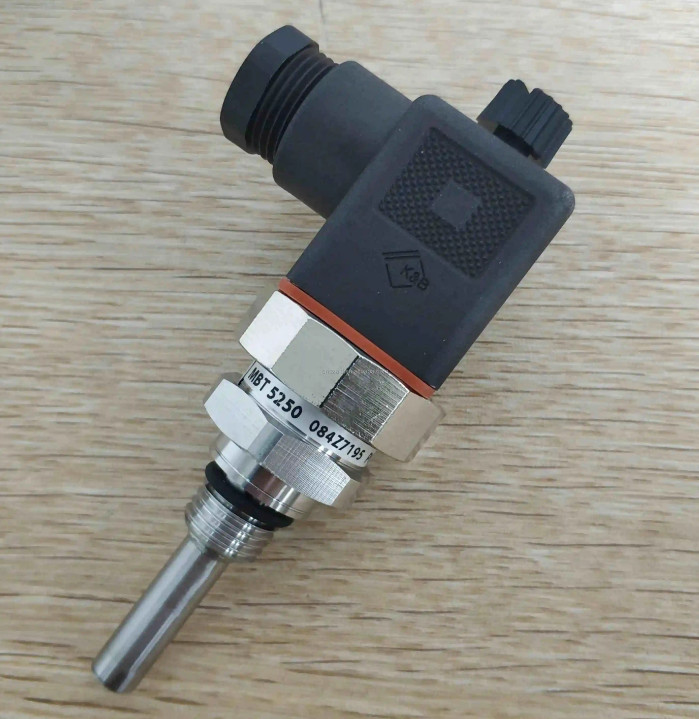

Danfoss MBT 5250 Inductive Temperature Sensor Switch Model 084Z7195
| Place of Origin | China |
|---|---|
| Marka adı | Dandoss |
| Sertifika | - |
| Model Number | 084Z7195 |
| Minimum Order Quantity | 1 |
| Fiyat | USD250/PC |
| Packaging Details | Original |
| Delivery Time | 1week |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Type | Temperature Sensor | Sensing Range | picture show |
|---|---|---|---|
| Whether the smart | Yes | IP level | IP65 |
| Model Number | 084Z7195 |
Ürün Açıklaması
| Ambient temperature max. [°C] |
125 °C
|
| Ambient temperature max. [°F] |
257 °F
|
| CE evaluated |
Yes
|
| China RoHS compliance |
Out of scope
|
| Connection material |
Stainless steel
|
| Connection type |
M
|
| Contain batteries |
No
|
| DG Indicator Profile |
Not relevant for dangerous goods
|
| EEE category |
5 small equipment (any external dimension < 50 cm)
|
| EU RoHS compliance |
Yes with exemptions
|
| EU RoHS exemption clause |
6(c)
|
| Electrical conn. Male/Female |
Male and Female
|
| Electrical connection |
Angular connector
|
| Electrical connection size |
Pg 11
|
| Electrical connection standard |
EN 175301-803-A
|
| Enclosure rating IP |
IP65
|
| In scope of WEEE |
Yes
|
| Insertion length [in] |
1.570 in
|
| Insertion length [mm] |
40 mm
|
| Insertion type |
Fixed
|
| Material Description |
Sensor MBT 5250-0000-040-6C0 spec. finge
|
| Number of terminals [pcs] |
3 pc
|
| Output signal |
Ohm
|
| Packing format |
Multi pack
|
| Process connection Male/Female |
Male
|
| Process connection material |
Stainless steel
|
|
Characteristic
|
Value
|
|---|---|
| Process connection size |
14x1.5
|
| Process connection standard |
ISO 965
|
| Process connection type |
M
|
| Product Type |
MBT 5250
|
| Product group |
Sensors
|
| Product line |
Sensing Solutions
|
| Product name |
Temperature sensor
|
| Protection tube diameter [in] |
0.315 in
|
| Protection tube diameter [mm] |
8.0 mm
|
| Protection tube material |
AISI 316 TI
|
| Quantity per packing format |
20 pc
|
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1)
|
| SCIP dossier no. |
1741c763-fa54-4cb9-973c-52e51e4079b9
|
| Sensor Insert |
Exchangeable
|
| Sensor elem. resistance [Ohm] |
100 Ohm
|
| Sensor element [pc] |
1 pc
|
| Sensor element standard |
EN 60751
|
| Sensor element tolerance |
Class B
|
| Sensor element type |
Pt
|
| Temperature range [°C] [max] |
200 °C
|
| Temperature range [°C] [min] |
-50 °C
|
| Temperature range [°F] [max] |
392 °F
|
| Temperature range [°F] [min] |
-58 °F
|
| Type designation |
MBT 5250-0000-040-6C0
|
| Wires [pcs] |
2 pc
 |
