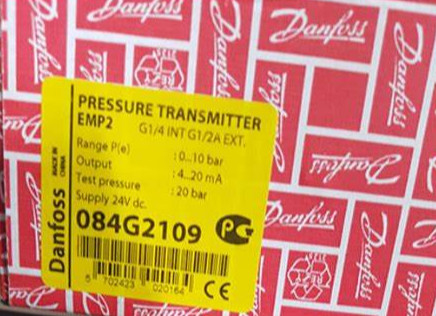

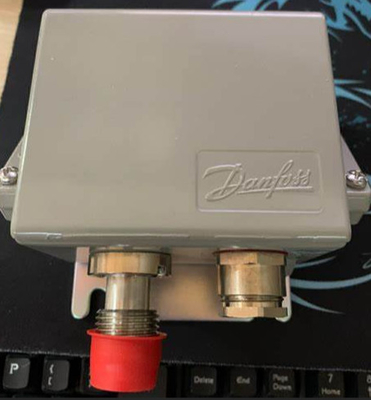

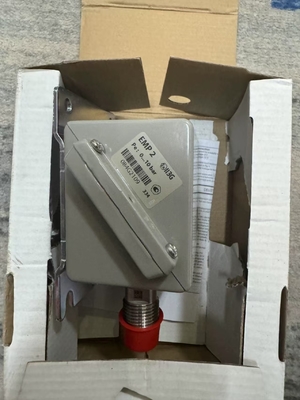

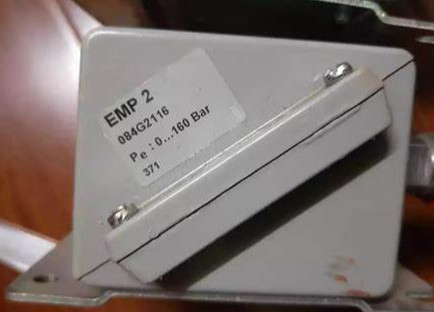

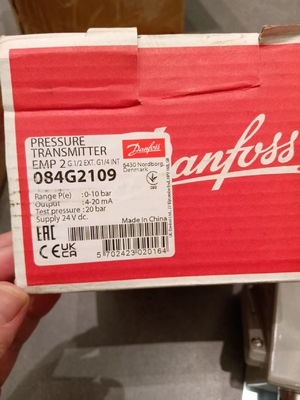

Dan-foss Precision Pressure Transmitter EMP 2, 084G2108 084G2109 084G2111 Original in Stock

  • Dan-foss Precision Pressure Transmitter EMP 2, 084G2108 084G2109 084G2111 Original in Stock
  • Dan-foss Precision Pressure Transmitter EMP 2, 084G2108 084G2109 084G2111 Original in Stock
  • Dan-foss Precision Pressure Transmitter EMP 2, 084G2108 084G2109 084G2111 Original in Stock
  • Dan-foss Precision Pressure Transmitter EMP 2, 084G2108 084G2109 084G2111 Original in Stock
  • Dan-foss Precision Pressure Transmitter EMP 2, 084G2108 084G2109 084G2111 Original in Stock
Place of Origin Japan
Marka adı Dandoss
Sertifika -
Model Number 084G2109
Minimum Order Quantity 1
Fiyat USD260/PC
Packaging Details Original
Delivery Time 1week
Payment Terms L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability 1000

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Marka adı danfoss Model Number 084G2109
Condition new and original Single gross weight 1.5kg
Mesaj bırakın
Ürün Açıklaması
+ supply
P
- common
N
Accuracy, max. [±FS%]
1.00 %
Accuracy, typical [±FS%]
0.5 %
Approval
ABS, BV, CCS, CE, DNV, GL, GOST POCC, KR, LR, NNK, RINA
CE evaluated
Yes
China RoHS compliance
Out of scope
Compensated temp. range [°C] [max]
70 °C
Compensated temp. range [°C] [min]
0 °C
Compensated temp. range [°F] [max]
158 °F
Compensated temp. range [°F] [min]
32 °F
Contain batteries
No
DG Indicator Profile
Not relevant for dangerous goods
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
7(c)-I
Electrical connection
Terminal block
Electrical connection size
Pg 13.5
Enclosure rating IP
IP65
Flush diaphragm
No
High Clipping Level
22.40
Intrinsically safe
No
Low Clipping level
3.60
Material Description
Sensor EMP 2-1811-F6CD24-2
Medium temperature range [°C] [max]
70 °C
Medium temperature range [°C] [min]
-10 °C
Medium temperature range [°F] [max]
158 °F
Medium temperature range [°F] [min]
14 °F
Non-linearity BFSL [±FS%]
0.30 %
Output signal
Current
Characteristic
Value
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Overload pressure max. [bar]
60.0 bar
Packing format
Multi pack
Pressure Male/Female
Male/Female
Pressure connection notes
EXT. G1/4 INT
Pressure connection size
1/2
Pressure connection standard
EN 228-1
Pressure connection type
G
Pressure range [bar] [max]
6.00 bar
Pressure range [bar] [min]
0.00 bar
Pressure range [psi] [max]
87.00 psi
Pressure range [psi] [min]
0.00 psi
Pressure reference
Gauge (relative)
Product Type
EMP 2
Product group
Sensors
Product line
Sensing SolutionsDan-foss Precision Pressure Transmitter EMP 2, 084G2108 084G2109 084G2111 Original in Stock 0Dan-foss Precision Pressure Transmitter EMP 2, 084G2108 084G2109 084G2111 Original in Stock 1Dan-foss Precision Pressure Transmitter EMP 2, 084G2108 084G2109 084G2111 Original in Stock 2
